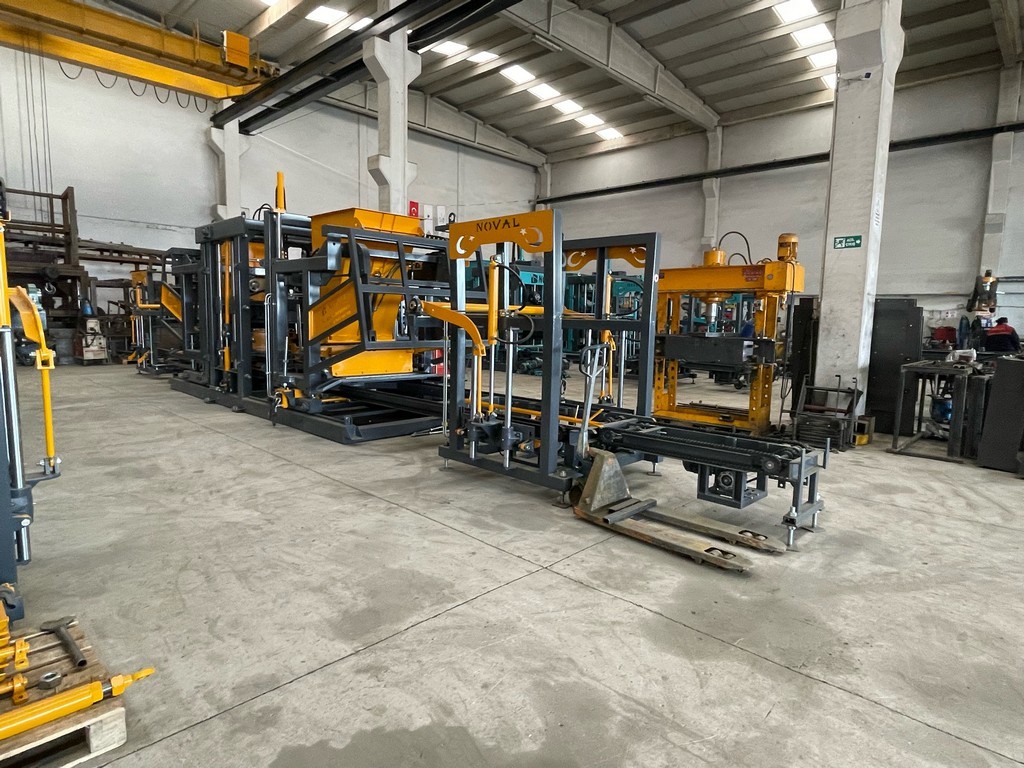

NBM 5030 Concrete Block and Paving Stone Machine

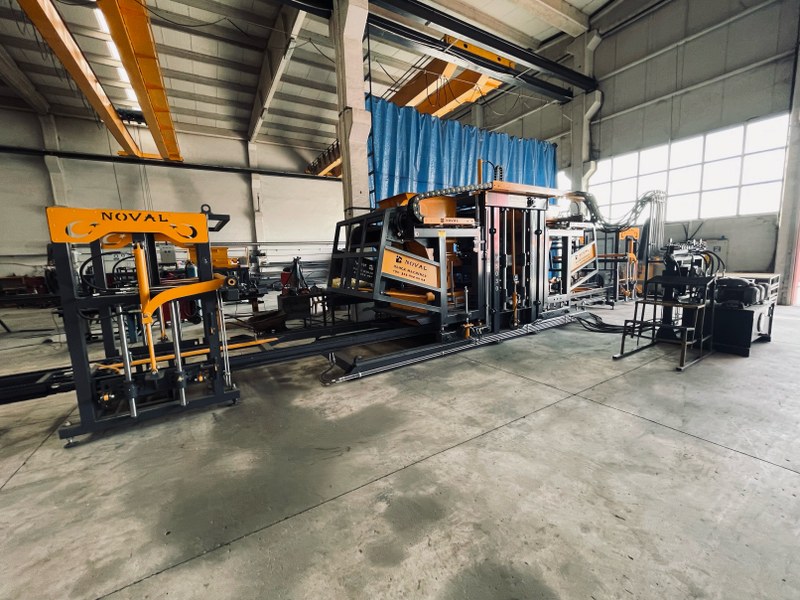

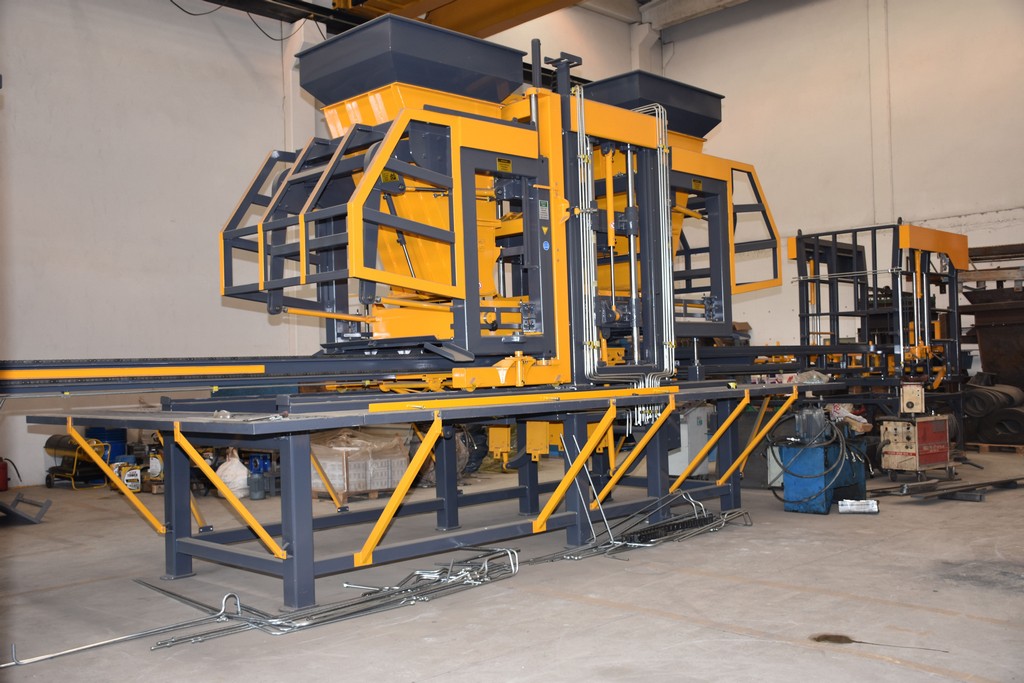

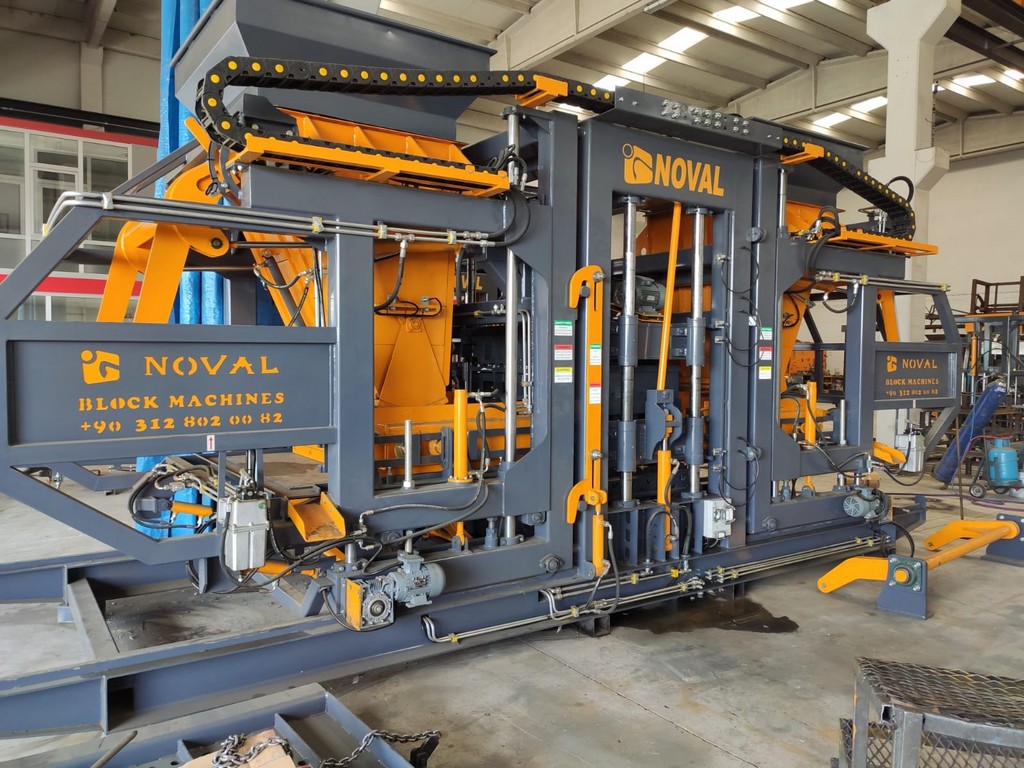

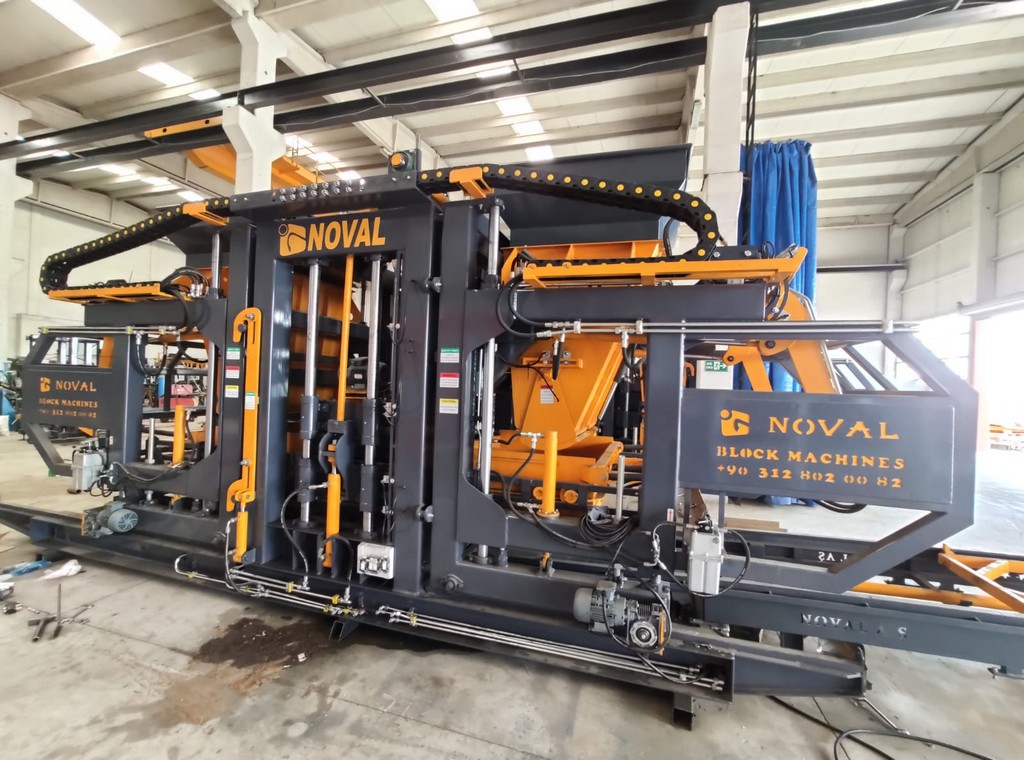

The NBM 5030 Concrete Paving Stone and Block Machine, developed by NOVAL Inc., is designed for professional concrete product manufacturing facilities with semi-automatic and fully automatic system options that can be adapted to different production targets. Its powerful hydraulic structure, high pressing capacity, and user-friendly control system ensure the consistent production of concrete blocks and interlocking paving stones.

The machine compresses the concrete mixture inside the mold in a controlled manner using a hydraulic system operating within a pressure range of 120–200 bar. In a single press cycle, it can produce 12 standard blocks measuring 20 × 40 × 20 cm or 30 interlocking paving stones. This production capacity provides a balanced solution for businesses seeking to meet medium- and high-volume orders.

During the production process, the concrete compacted inside the mold is pressed onto production pallets. The products are transported to the curing area on the same pallets and remain there until they achieve the required strength. Therefore, when planning the facility, a sufficient number of production pallets should be prepared by considering the daily production target, curing time, and product type.
